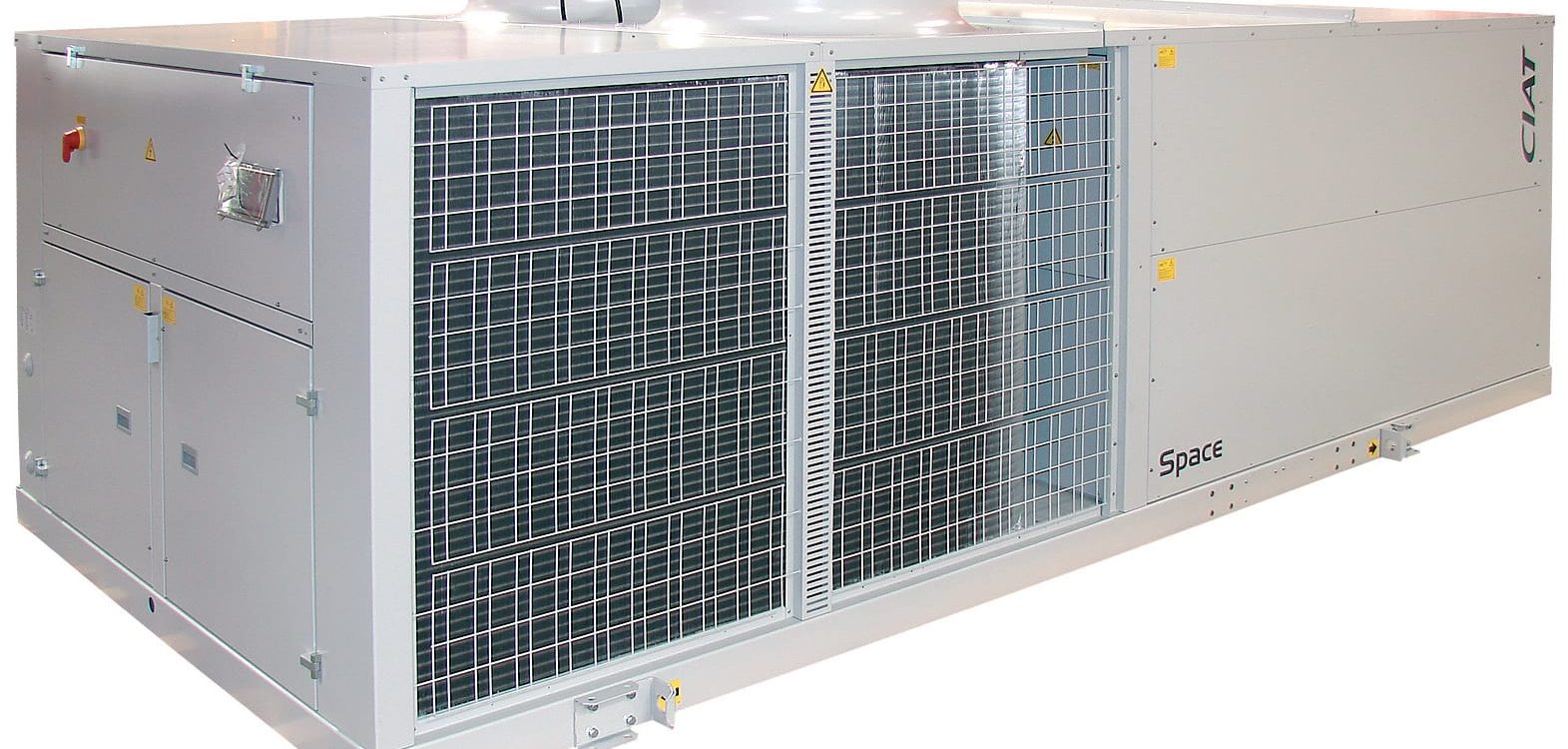

Packaged, self-contained rooftop unit (gas module for connection delivered separately) intended for air conditioning large surface areas. It is designed for outdoor rooftop installation on the premises requiring air conditioning.


  • Packaged units,
  • Painted polyester casing,
  • Self-supporting painted frame,
  • 1 air circuit,
  • 1 to 4 refrigerant circuits, 1 to 4 Scroll-type compressors, refrigerant R410A,
  • Single G4 filter or double G4 + F6 to F9 filter
  • 1 to 3 internal centrifugal fans
  • 1 to 6 outdoor propeller fans with speed variation selection (EC motor)
  • Condensate pan or stainless steel pan protection
  • Base with adjustable angle,
  • Heating through heat pump, hot water coil or electric,
  • Condensation gas heater option with capacity modulation,
  • Integrated high quality APENGROUP gas burner with air cooled condenser and with power inverter (30 to 100%), efficiency up to 105%PCI, anti-stratification control, KIWA certification
  • Complete electric cabinet, AVANT PRO electronic control,
  • DEGIPACK alternating defrosting management
  • Several options


Available in 17 models and 2 versions:- RPF: Cold only,

  • IPF: Hot or cold reversible and 6 assemblies
  • M0: Standard version – All-air return,
  • MS: Version with motorised damper at the air return and for the fresh air, thereby providing free-cooling operation when needed,
  • ME: Version with motorised fresh air intake damper for the fresh air and at the air return + extraction propeller fan
  • MA: Version with motorised intake damper at the air return and for the fresh air for free-cooling operation + an air return propeller fan with adaptable extraction damper depending on the positive pressure in the room
  • MC: Version with motorised intake damper at the air return, for the exhaust air and fresh air for free-cooling operation + an air return centrifugal fan to ensure the flow of exhaust air is equal to the fresh air intake flow.
  • MRC : MC version with cooling recovery circuit

Gas bruner option heating capacity from 37 to 197 kW

Air flow rates: 4 000 to 46 m3/h

Range of Use:

Heating capacity between 20 and 286 kW
Cooling capacity between 19 and 277 kW
Air flow rate from 18 000 to 46 000m3/h
