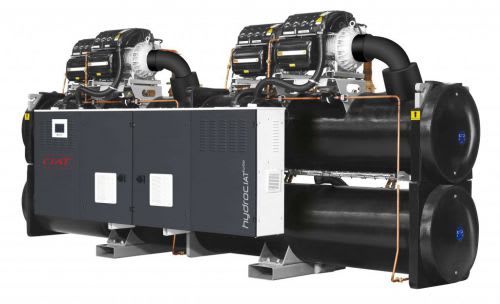

CIAT HydroCIAT Turbo LWT (550 to 1600kW)


The latest generation of HYDROCIATTURBO LWT water chillers and water-to-water heat pumps are the perfect solution for all heating and cooling applications in the Office, Healthcare, Industry, Administration, Shopping centers, data centers and Collective Housing markets.


  • R134arefrigerant
  • Compact equipment with a small footprint for installation indoors
  • Frame made of RAL 7024 painted sheet metal panelling
  • 1 or 2 independent refrigerating circuits
  • 2 Stages centrifugal compressors
  • Magnetic levitation bearings
  • No oil
  • Shell and tube type evaporator equipped with a water flow controller
  • Shell and tube water-cooled condenser
  • Electrical cabinet equipped with remote control transformer and safety switch
  • Control module with Connect Touch microprocessor and a large range of auto adaptive functions
  • Interface with intuitive multilingual 5’’colour touchscreen.
  • Web server (IP)for remote access to the interface screen and fault warning emails
  • Technical documentation integrated into the controller
  • Communication with the CMS via the MODBUS/JBUS protocol as standard (LON and Bacnet optional)


15 models (1800X to 4800X HPS)

Two acoustic versions available: Standard – Low Noise

Range of Use:

Cooling capacity from 550 to 1600 kW
Heating capacity from 1 650 to 1875 kW
